We are one of the leading manufacturer of Groundnut Oil Press Machines which is manufactured in our state-an-art manufacturing unit. These machines are made in India product with European and US standard.
GOYUM Oil Pressing Machine is the number one choice of most oil mill owners, because it has the lowest operational time, highest efficiency and maximum profit. Oil Pressing Machine process to extract oil from groundnuts is very simple, fast and easy. This machine uses friction and pressure from the screw drive to move and compress peanuts, then the crude peanut oil comes out through small holes. These openings are very small so that they can prevent any type of residue or solid substances from mixing with the oil that is extracted. This solid residue exists from the other end which is known as oil cake.

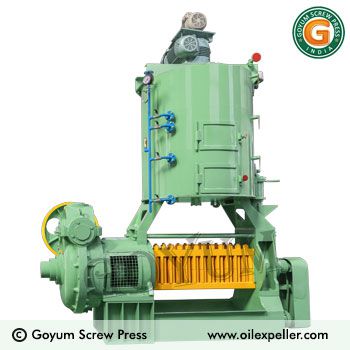

Groundnut Oil Press Machine
Features of Groundnut Oil Press Machine
- The operating principle of these oil machines is very simple and highly effective.
- Maintenance of such machines is simple and easy.
- Main Worm Shaft can be withdrawn without disturbing the Gear Box.
- Our machines do not produce any unnecessary noise.
- Large pressure force in the chamber, high oil production.
- Easy to operate, easy to set up and commissioning.
Below are the Technical Details about our Groundnut Oil Press Machine
We offer oil press machines with different models and capabilities. Below are technical data for each model, there is always an oil press that can meet your oil needs! Start a low investment business with GOYUM Screw Oil Press Machine, we are always in your service!
| Model |
Capacity |
Power (HP) |
Length |
Breadth |
Height |
| Expeller Motor |
Kettle Motor |
| GOYUM 60 |
5 – 6 Ton per 24 Hours |
3 Phase, 20 HP, 960 RPM |
– |
8’12” |
2’11” |
6’12” |
| GOYUM MK-III |
8 – 10 Ton per 24 Hours |
3 Phase, 30 HP, 1440 RPM |
– |
8’6″ |
4’1″ |
8’8″ |
| GOYUM MK-IV |
12 – 15 Ton per 24 Hours |
3 Phase, 50 HP, 1440 RPM |
3 Phase, 5 HP, 1440 RPM |
8’8″ |
4’6″ |
9′ |
| GOYUM 150 |
15 – 17 Ton per 24 Hours |
3 Phase, 40 HP, 1440 RPM |
3 Phase, 7.5 HP, 1440 RPM |
8’6″ |
4’7″ |
13′ |
| GOYUM MK-V-C |
18 – 20 Ton per 24 Hours |
3 Phase, 50 HP, 1440 RPM |
3 Phase, 5 HP, 1440 RPM |
11’8″ |
4’3″ |
11’10” |
| GOYUM 240 |
22 – 25 Ton per 24 Hours |
3 Phase, 75 HP, 1440 RPM |
3 Phase, 5 HP, 1440 RPM |
10’2″ |
4’1″ |
7’7″ |
| GOYUM 600 |
30 – 45 Ton per 24 Hours |
3 Phase, 100 HP, 1440 RPM |
3 Phase, 20 HP, 1440 RPM |
14’ |
5’6” |
16’6” |
| GOYUM 1500 |
45 – 125 Ton per 24 Hours |
3 Phase, 150 HP, 1440 RPM |
3 Phase, 25 HP, 1440 RPM |
30’ |
11’6” |
19’6” |
| GOYUM 2400 |
230 – 250 Ton per 24 Hours |
3 Phase, 250 HP, 1440 RPM |
3 Phase, 50 HP, 1440 RPM |
31’ |
7’4” |
23’6” |
Note: The above mentioned Capacity Range includes single pressing as well as pre-pressing. Further capacity differs as per the oil content and density of oilseeds and nuts too.
Are you looking for the most suitable and cost effective groundnut oil press machine or groundnut oil mill plant to start your own peanut oil manufacturing business, then you are in the right place. GOYUM is the best and reliable manufacturer, exporter and supplier of oilseed crushing machines.
Please fill the below Enquire Now Form so that we can contact and provide you the best solution for your requirement.
